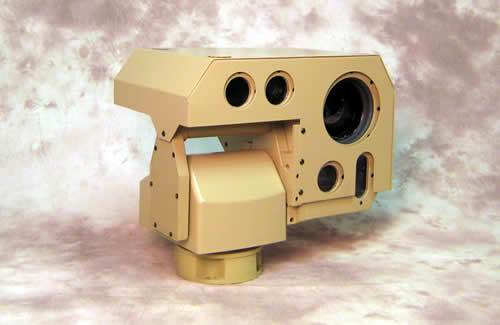

The M1-NSTI-D09-0 Thermal/Visual Imaging System combines state-of-the-art imagers with IECs newly released VipIR™ signal processingto yield superior thermal and visual surveillance. This variant of the M1 system combines a wide variety of sensors to provide the most data available in a tactical, all-weather surveillance system. The thermal imaging system can be configured with either 90 or optional 50 (HFOV) optics with motorized focus, as well as visual camera with 312X total zoom and optional intensified visual camera with 16X total zoom. Optional laser range finder and laser illuminator/designator provide additional data for precise target acquisition.
M1-NightStalkIR™ NSTI System Features
Single integrated payload enclosure for both IR and Visual imager
Full 360° rotation
Low-light visual camera standard with IR imager
• User Selectable palettes
IEC's new VipIR image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Thermal/visual image fusion
GPS position display with vector compass
On screen position display of imaging direction and other tactical data
Programmable scan pattern
Hand-controller or PC software control (included)
Networkable with IEC's patented IntrudIR Alert alarm/tracking system
Optional Image Intensified camera
Optional fiber optic or wireless capabilities
Kit comes complete with:
Environmentally-sealed Pan & Tilt positioning stage
Advanced control system with VipIR™ image processing
20' Master cable
Standard hand-controller with 10 cable
10 power cable with connector
PC control software
Serial control cable
7 LCD video monitor and video cables
Users Guide
Available colors: Black, White, Sand, Military Green
|
