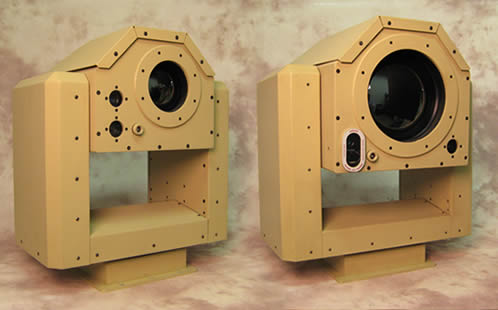

M3-HPTI Thermal Imaging Systems combine state-of-the-art imagers with IEC’s newly released VipIR™ signal processing (now standard on IEC’s M1 and M3 systems) to yield superior thermal and visual surveillance. Like all of IEC’s imagers, this system comes standard with a visual camera (312X zoom) and can be upgraded with other optional sensors as required. The enhanced M3-HPTI thermal imaging system can be configured with a variety of thermal optics options including DFOV applications on a high-performance, zero-backlash positioning stage, along with a high-performance visual camera (312X zoom), suitable for vehicle or fixed applications. Cooled imager with other optics also available.
Thermal Imaging Systems - M3-HPTI Features
• Single integrated payload enclosure for both IR and Visual imager
• Full 360° rotation
• Low-light visual camera standard with IR imager
• IEC's new VipIR™ image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Visual/Thermal image fusion
• GPS position display with vector compass
• On screen position display of imaging direction and other tactical data
• Programmable scan pattern
• Hand-controller or PC software control (included)
• Networkable with IEC's patented IntrudIR Alert™ alarm/tracking system
• Optional Image Intensified camera
• Optional fiber optic or wireless capabilities
Thermal imaging systems come complete with:
• Environmentally-sealed Pan & Tilt positioning stage
• Advanced control system with VipIR™ image processing
• 20' Master cable
• Standard hand-controller with 10’ cable
• 10’ power cable with connector
• PC control software
• Serial control cable
• 7” LCD video monitor and video cables
• Users Guide
Available colors: Black, White, Sand, Military Green
Need more information about our thermal imaging systems? Send IEC Infrared Systems an e-mail or call 440-234-8000.
|
