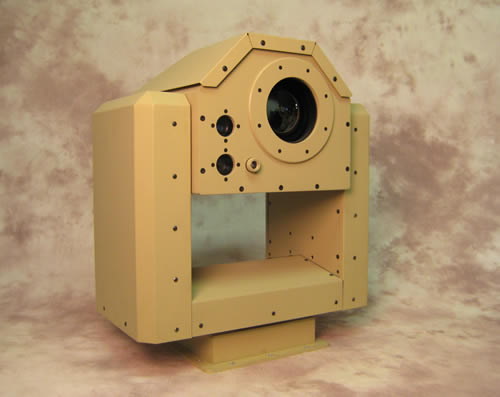

The M3-HPTI-Q02-0 Thermal/Visual Imaging System combines state-of-the-art imagers with IEC’s newly released VipIR™ signal processing to yield superior thermal and visual surveillance. The largest version of the M3 family features the longest uncooled thermal optics on the market on a high-performance, zero-backlash positioner, with a DFOV lens providing 90/30 HFOV (human detection greater than 7600 meters). Like all of IEC’s imagers, this system comes standard with a visual camera (312X zoom) and can be upgraded with other optional sensors as required.
M3-HPTI System Features
• Single integrated payload enclosure for both IR and Visual imager
• Full 360° rotation
• Low-light visual camera standard with IR imager
• IEC's new VipIR™ image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Thermal/visual image fusion
• GPS position display with vector compass
• On screen position display of imaging direction and other tactical data
• Programmable scan pattern
• Hand-controller or PC software control (included)
• Networkable with IEC's patented IntrudIR Alert™ alarm/tracking system
• Optional Image Intensified camera
• Optional fiber optic or wireless capabilities
Kit comes complete with:
• Environmentally-sealed Pan & Tilt positioning stage
• Advanced control system with VipIR™ image processing
• 20' Master cable
• Standard hand-controller with 10’ cable
• 10’ power cable with connector
• PC control software
• Serial control cable
• 7” LCD video monitor and video cables
• Users Guide
Available colors: Black, White, Sand, Military Green
|
