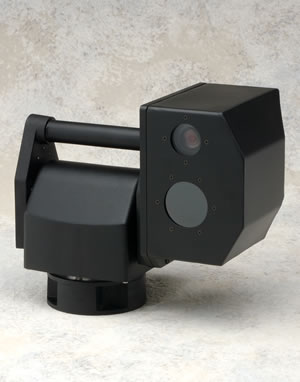

The M1-NightStalkIR™ NSMR High Resolution Medium Range Thermal/Visual Imaging System combines a high resolution thermal imager (640x480 array size) with IEC’s newly released VipIR™ signal processing (now standard on all M1 systems) to yield high quality thermal and visual surveillance in a ruggedized pan & tilt unit. The NSMR system provides high durability and mission capability for all weather, around-the-clock surveillance.
M1-NightStalkIR™ NSMR Dual Field of View
System Features
• 320x240 Uncooled Thermal Imager
- 22.4°/7.6° Horizontal Field of View (HFOV)
• Thermal Image Colorization
• User Selectable palettes
• 12X Continuous Thermal Digital Zoom
• Visual imager with 26X zoom
• Thermal/visual image fusion
• Picture-in-picture (3 modes)
• On-Screen Menus and Displays
• Variable Speed Positioner Control
• Heated Payload Enclosure
• Included PC Control Software
Click on links below to download related PDF files for the brochure an™technical specification info for the M1-NightStalkIR™ NSMR DFOV Imaging System
 |
|
Kit comes complete with:
• Pan & tilt mounted NSLP imager w/ 22.4°/7.6° HFOV
• Standard control system with VipIR™ image processing
• Master cable
• Standard handcontroller
• 10’ power cable with connector
• PC control software
• Serial control cable
• 7” LCD video monitor and video cables
• Users Guide
Available colors: Black, White, Sand, Military Green
|
