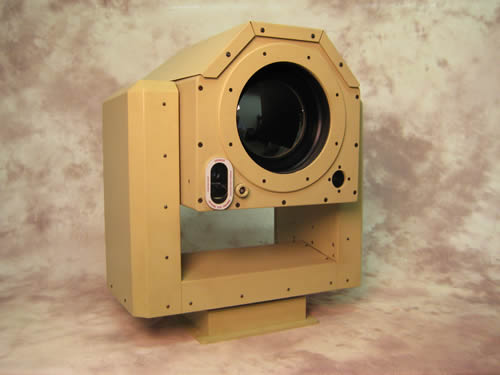

The M3-HPTI-R05-0 Thermal/Visual Imaging System combines state-of-the-art imagers with IEC’s newly released VipIR™ signal processing to yield superior thermal and visual surveillance. The enhanced M1 imaging system can be configured with a variety of thermal optics options on a high-performance, zero-backlash positioning stage, along with a high-performance visual camera (312X zoom), suitable for vehicle or fixed applications. Single focal length (thermal imager) options include models with HFOV of 6. or 4.90 (human detection up to 5700 meters), and a DFOV option with 16.90/5.70 HFOV (human detection up to 5000 meters). Cooled imager with other optics also available.
M3-HPTI System Features
• Single integrated payload enclosure for both IR and Visual imager
• Full 360° rotation
• Low-light visual camera standard with IR imager
• IEC's new VipIR™ image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Thermal/visual image fusion
• GPS position display with vector compass
• On screen position display of imaging direction and other tactical data
• Programmable scan pattern
• Hand-controller or PC software control (included)
• Networkable with IEC's patented IntrudIR Alert™ alarm/tracking system
• Optional Image Intensified camera
• Optional fiber optic or wireless capabilities
Kit comes complete with:
• Environmentally-sealed Pan & Tilt positioning stage
• Advanced control system with VipIR™ image processing
• 20' Master cable
• Standard hand-controller with 10’ cable
• 10’ power cable with connector
• PC control software
• Serial control cable
• 7” LCD video monitor and video cables
• Users Guide
Available colors: Black, White, Sand, Military Green
|
