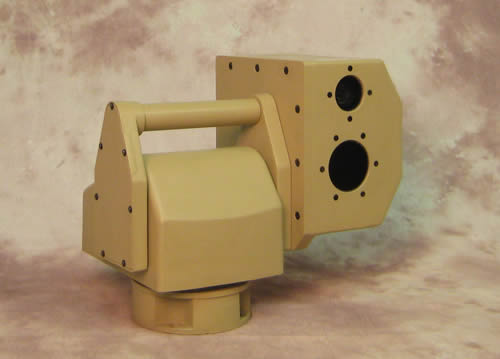

The M1-NSTI-A18-0 Thermal/Visual Imaging System combines state-of-the-art imagers with IEC’s newly released VipIR™ signal processing to yield superior thermal and visual surveillance. The standard M1 system provides rugged, cost effective surveillance capabilities under all weather and lighting conditions, making it an ideal choice for fixed, mobile or drop-deployable applications. The thermal optics can be factory configured for wide horizontal field of view (HFOV) of 180 at short ranges or optional 100 for human target detection at ranges up to 1300 meters, while the visual imager provides up to 312X total zoom.
M1-NightStalkIR™ NSTI System Features
Single integrated payload enclosure for both IR and Visual imager
Full 360° rotation
Low-light visual camera standard with IR imager
• User Selectable palettes
IEC's new VipIR image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Thermal/visual image fusion
GPS position display with vector compass
On screen position display of imaging direction and other tactical data
Programmable scan pattern
Hand-controller or PC software control (included)
Networkable with IEC's patented IntrudIR Alert alarm/tracking system
Optional Image Intensified camera
Optional fiber optic or wireless capabilities
Kit comes complete with:
Environmentally-sealed Pan & Tilt positioning stage
Advanced control system with VipIR™ image processing
20' Master cable
Standard hand-controller with 10 cable
10 power cable with connector
PC control software
Serial control cable
7 LCD video monitor and video cables
Users Guide
Available colors: Black, White, Sand, Military Green
|
