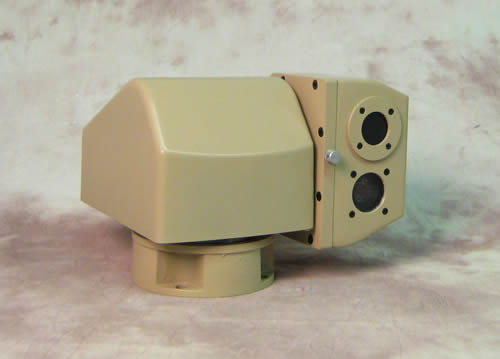

The M1-NSTI-M35-0 Thermal/Visual Imaging System combines state-of-the-art imagers with IEC’s newly released VipIR™ signal processing to yield superior thermal and visual surveillance in a low-profile, ruggedized pan & tilt unit. Specially designed with quick-change payload and submersible to 5 depth for 1 minute, the M1-NSTI-M35-0 system provides unparalleled durability and mission flexibility in a feature-rich system.
M1-NightStalkIR™ NSTI System Features
Single integrated payload enclosure for both IR and Visual imager
Full 360° rotation
Low-light visual camera standard with IR imager
• User Selectable palettes
IEC's new VipIR image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Thermal/visual image fusion
GPS position display with vector compass
On screen position display of imaging direction and other tactical data
Programmable scan pattern
Hand-controller or PC software control (included)
Networkable with IEC's patented IntrudIR Alert alarm/tracking system
Optional Image Intensified camera
Optional fiber optic or wireless capabilities
Kit comes complete with:
Environmentally-sealed Pan & Tilt positioning stage
Advanced control system with VipIR™ image processing
20' Master cable
Standard hand-controller with 10 cable
10 power cable with connector
PC control software
Serial control cable
7 LCD video monitor and video cables
Users Guide
Available colors: Black, White, Sand, Military Green
|
