The longest-range option in the LRTI family is the LRTI-RCC Route Clearance Camera system. Designed to bid specs from the Rapid Equipping Force of the U.S. Army, the LRTI-RCC combines a high-resolution (640x480 array) thermal imager with the same dual field-of-view (DFOV) thermal lens from the DFOV LRTI. A visual imager is standard on the LRTI-RCC; this visual imager is an upgraded model, compared to the optional visual imagers on the other SRTI/MRTI/LRTI imagers. This enhanced visual imager uses an extremely long focal length visual zoom lens, providing detailed imagery of small objects from greater distance than ever. The system is mounted on a specially-modified pan & tilt positioner, suitable for vehicle operations and long service life.
LRTI-RCC System Features
640x480 High Resolution Uncooled Thermal Imager
Dual Field of View Thermal Lens
- 5.1°/15.1° Selectable Horizontal Field of View (HFOV)
Image Colorization
- User Selectable palettes
- Hot-target colorization
2X , 4X, 8X Digital Zoom
Enhanced visual imager with 137X Optical Zoom
On-Screen Menus and Displays
Image Polarity Control
Manual/Auto Gain & Level
Variable Speed Positioner Control
Heated Payload Enclosure
Included PC Control Software
Click on links below to download related PDF files for the brochure and technical specification info for this LRTI-RCC imager.
 |
|

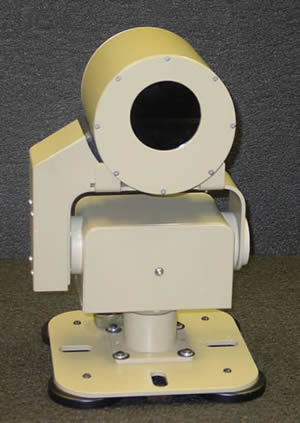

Pan & tilt mounted LRTI-RCC imager
w/ 5.1°/15.1° HFOV
Enhanced visual imager with 137X Optical Zoom
Standard control system
Master cable
Standard handcontroller
10 power cable with connector
PC control software
Serial control cable
10 Hardened LCD video monitor and video cables
Users Guide
Available colors: Black, White, Sand, Military Green
|
