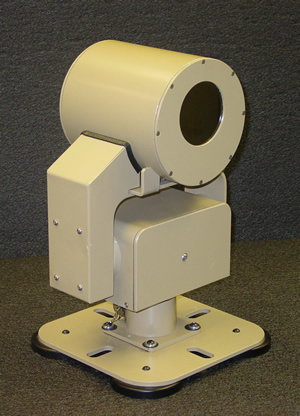

IEC's SRTI family of short range thermal imaging systems combine proven L-3 infrared detector technology with a rugged, environmentally sealed positioning system, to provide reliable thermal imaging under any lighting or weather conditions. All systems come standard with uncooled 320x240, Barium Strontium Titanate (BST) detectors for high resolution and long service life, while the positioning systems feature stainless steel gears and chains and sealed bearings for maintenance free operation.
SRTI Basic System Features
• 320x240 Uncooled Thermal Imager
- 18.1° Horizontal Field of View (HFOV)
• Image Colorization
- User Selectable palettes
- Hot-target colorization
• 2X , 4X, 8X Digital Zoom
• Visual imager with 26X zoom (optional)
• On-Screen Menus and Displays
• Image Polarity Control
• Manual/Auto Gain & Level
• Variable Speed Positioner Control
• Heated Payload Enclosure
• Included PC Control Software
Click on links below to download related PDF files for the brochure and technical specification info for this Standard Short Range Thermal Imager.
 |
|
Kit comes complete with:
• Pan & tilt mounted SRTI imager w/18.1o HFOV
• Standard control system
• Master cable
• Standard handcontroller
• 10’ power cable with connector
• PC control software
• Serial control cable
• 7” LCD video monitor and video cables
• Users Guide
Available colors: Black, White, Sand, Military Green
|
