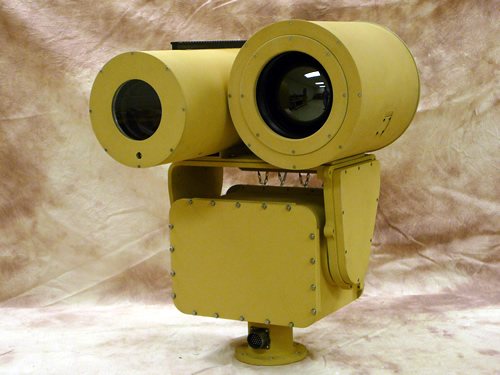

The Route Clearance Camera system provides top-mounted, removable thermal and visual payloads, plus an externally-mountable white light which provides 10 million candlepower. This ruggedized version of the LRTI imager also features an extended range visual imager with the longest focal length visual imager on the market, and IECs new VipIR™ signal processing system with thermal image colorization, 12X thermal continuous digital zoom, picture-in-picture display, thermal/visual image fusion, and much more.
E7-RCC System Features:
640x480 Uncooled Thermal Imager, with dual field of view thermal lens
Full 360° rotation
Visual imager with 138X optical zoom
Integrated white light (10 million candlepower)
IEC's new VipIR image processing system
- 12X thermal continuous digital zoom
- Picture-in-picture display
- Thermal/visual image fusion
GPS position display with vector compass
On screen position display of imaging direction and other tactical data
Programmable scan pattern
Hand-controller or PC software control (included)
Networkable with IEC's patented IntrudIR Alert alarm/tracking system
Optional Image Intensified camera
Optional fiber optic or wireless capabilities
Kit comes complete with:
Environmentally-sealed Pan & Tilt positioning stage
• Advanced control system with VipIR™ image processing
20' Master cable
Standard hand-controller with 10 cable
10 power cable with connector
PC control software
Serial control cable
7 LCD video monitor and video cables
Users Guide
|
