The M2-HPTC™ –CT320 Extreme Long Range Thermal/Visual Imaging System provides a high resolution cooled thermal imager (640x480 array size) and a user-selectable tri-field of view lens (TFOV) with IEC’s newly released VipIR™ signal processing (standard on all M2 systems) to yield high quality, long range thermal and visual surveillance on IEC’s custom designed M2-HPT™ positioning system. With the tri-field of view lens system for situational awareness at multiple ranges, the CT320 system provides long range imaging performance, accurate positioning, and high durability for around-the-clock surveillance in any weather.
M2-HPTC™ CT320 Extreme Long Range
System Features
• 640x480 Uncooled Thermal Imager
- 21.6°/6.9°/1.7° Horizontal Field of View (HFOV)
• Thermal Image Colorization
• User Selectable palettes
• 12X Continuous Thermal Digital Zoom
• Visual imager with 26X zoom
• Thermal/visual image fusion
• Picture-in-picture (3 modes)
• On-Screen Menus and Displays
• Variable Speed Positioner Control
• Heated Payload Enclosure
• Included PC Control Software
Click on links below to download related PDF files for the brochure and technical specification info for the M2-HPTC™ CT320 Imaging System.
 |
|
Kit comes complete with:

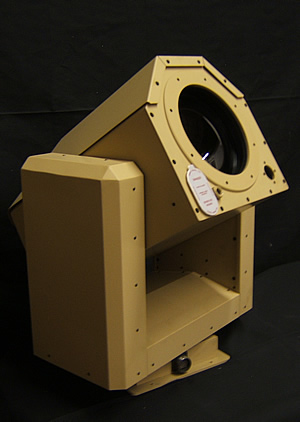

• Pan & tilt mounted M2-HPT™ S150 w/
21.6°/6.9°/1.7° HFOV
• Standard control system with VipIR™ image processing
• Master cable
• Standard handcontroller
• 10’ power cable with connector
• PC control software
• Serial control cable
• 7” LCD video monitor and video cables
• Users Guide
Available colors: Black, White, Sand, Military Green
|
